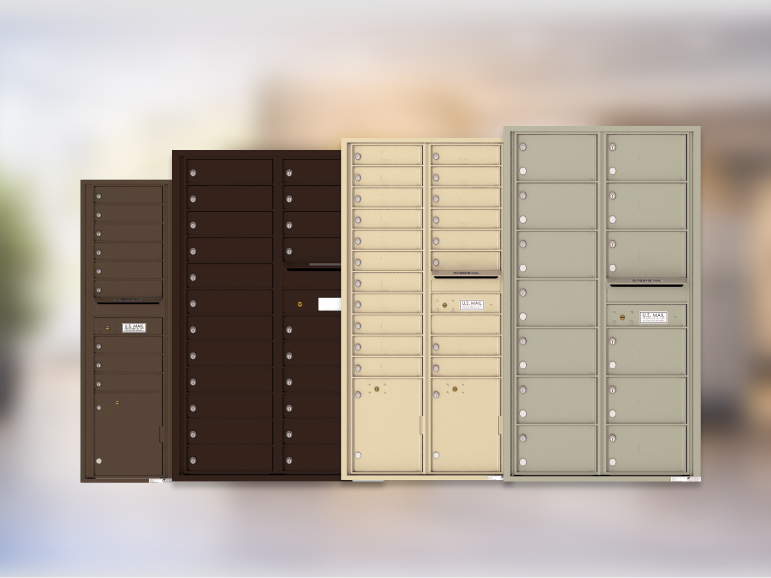

4C Horizontal Mailboxes - Multi Tenant

These mailboxes are commonly used in multi-tenant buildings such as apartment complexes, commercial buildings, or community living spaces. These mailboxes are designed to meet specific United States Postal Service (USPS) standards for security, durability, and accessibility. Key features of Commercial mail systems include:

1. Security: They are constructed to be tamper-resistant and secure, with locking compartments to protect mail from theft or vandalism.
2. Compartmentalization: These mailboxes typically have multiple individual compartments, each assigned to a different tenant or unit in the building.
3. Parcel Lockers: They often include parcel lockers for larger mail items or packages, which recipients can access using a key or code.
4. ADA Compliance: These mailboxes are designed to comply with the Americans with Disabilities Act (ADA), ensuring easy access for all users.
5. Durability: Made from robust materials, These units are built to withstand various weather conditions and heavy usage. Multi-tenant mailboxes are a standard choice for new constructions and major renovations where centralized mail delivery is desired or required. They provide a convenient, secure, and efficient way to manage mail distribution in multi-tenant settings.

4C mailboxes are designed to meet USPS standards for centralized mail delivery. They come in various configurations to accommodate different needs. Here are the primary types:

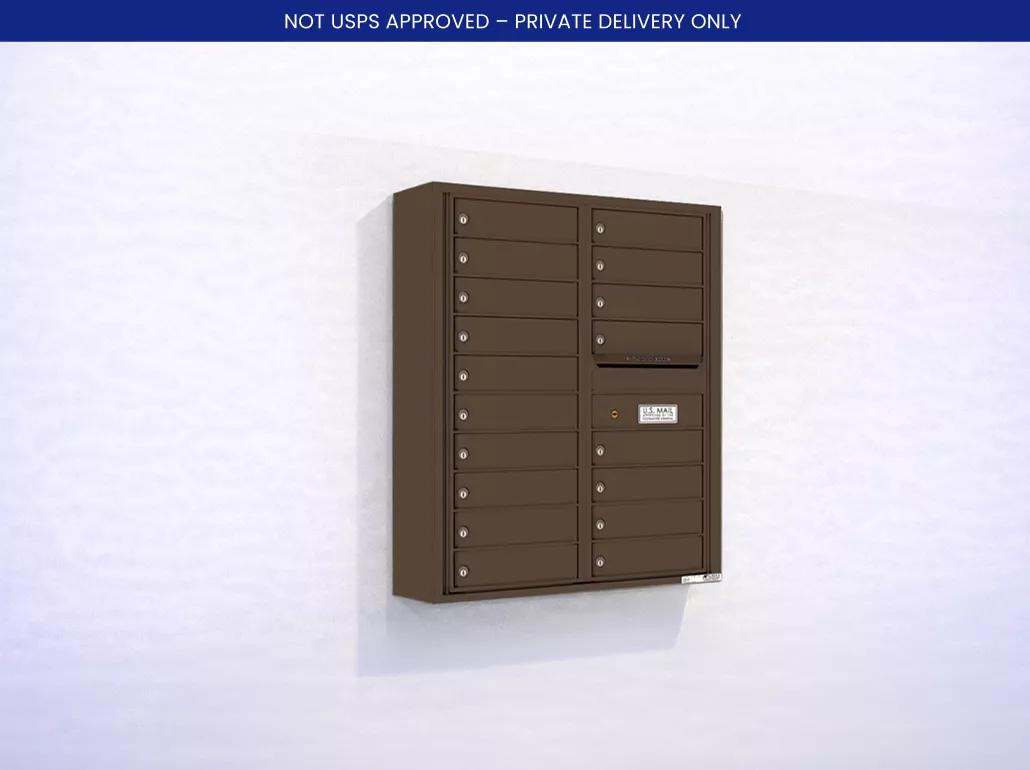

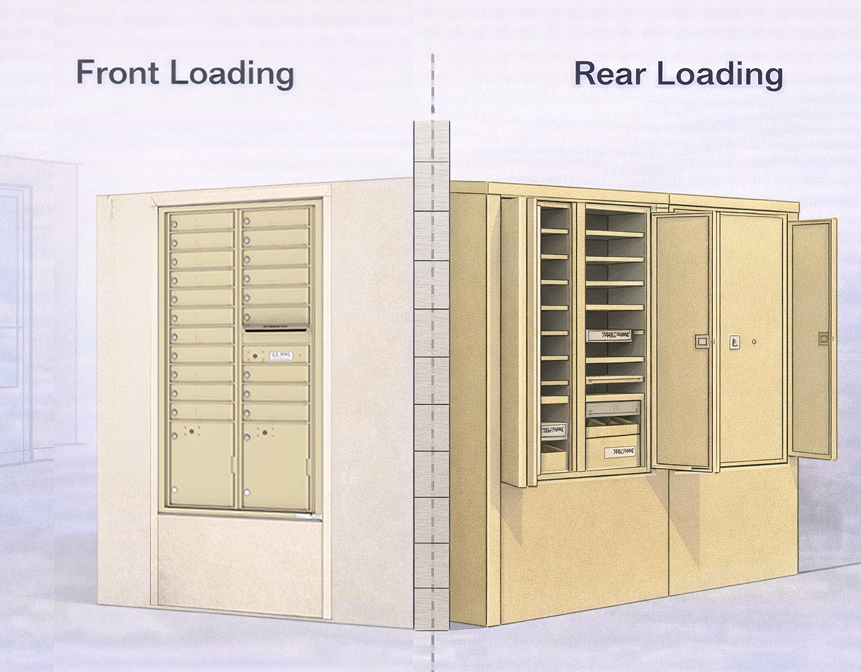

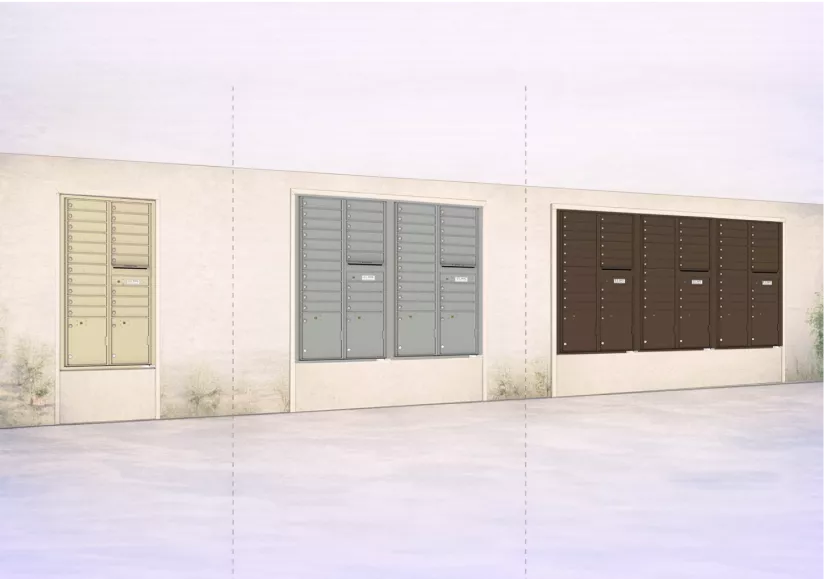

• Front-Loading Units: Accessible from the front, ideal for hallways or exterior walls.
• Rear-Loading Units: Mail is deposited from the back, suitable for mailrooms or behind walls.
• Single Column Units: Compact, vertical design for smaller spaces.
• Double Column Units: Larger capacity with two vertical columns, perfect for bigger buildings.
• Mixed-Use Units: Combines mail compartments and parcel lockers in one unit.
• ADA-Compliant Units: Designed to meet accessibility requirements.
• High-Capacity Units: Feature numerous compartments for large residential or commercial buildings​.

To comply with USPS regulations, these mailboxes must meet several criteria:

• Construction and Durability: Built with high-quality materials to withstand tampering and weather conditions.
• Compartment Sizes: Each compartment must be 12 inches wide and 15 inches deep, providing adequate space for daily mail delivery.
• Accessibility: Must adhere to ADA standards, ensuring some compartments are accessible to individuals with disabilities. The bottom mailbox should be no lower than 28 inches, and the top should be above 67 inches from the ground.
• Parcel Lockers: Should include parcel lockers to accommodate package deliveries, improving convenience and security​.

4C and 4B+ units differ primarily in regulatory compliance, security features, and design flexibility:

• Regulatory Compliance: 4C mailboxes are mandatory for new constructions and major renovations, aligning with the latest USPS standards, whereas 4B+ units are used for replacement in existing structures and do not meet current USPS regulations.
• Security and Size: The newer 4C units offer larger compartments and better security features to handle modern mail volumes and reduce theft risk. In contrast, 4B+ mailboxes have smaller compartments and fewer security enhancements
• Design Options: 4C units provide a broader range of design choices, including mixed-use configurations with integrated parcel lockers, enhancing their functionality and appeal for residential and commercial buildings. On the other hand, 4B+ units have more limited design options​..

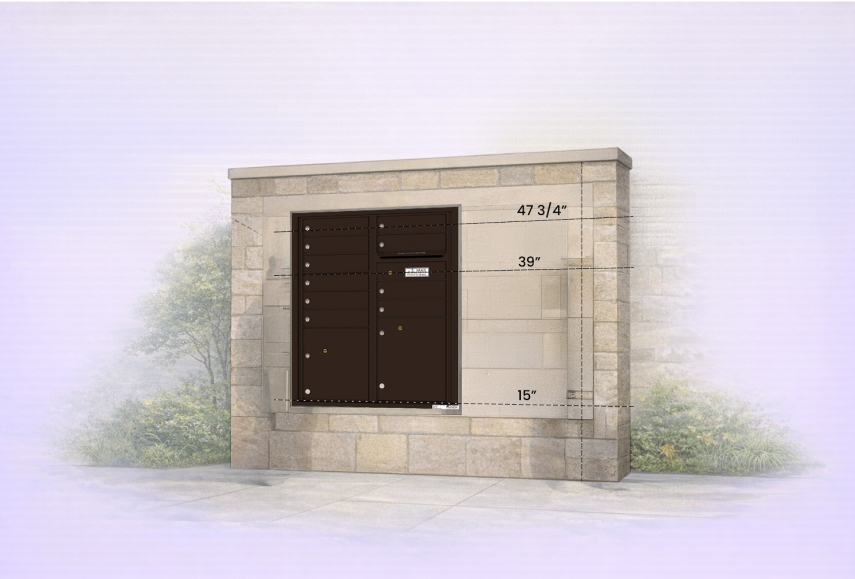

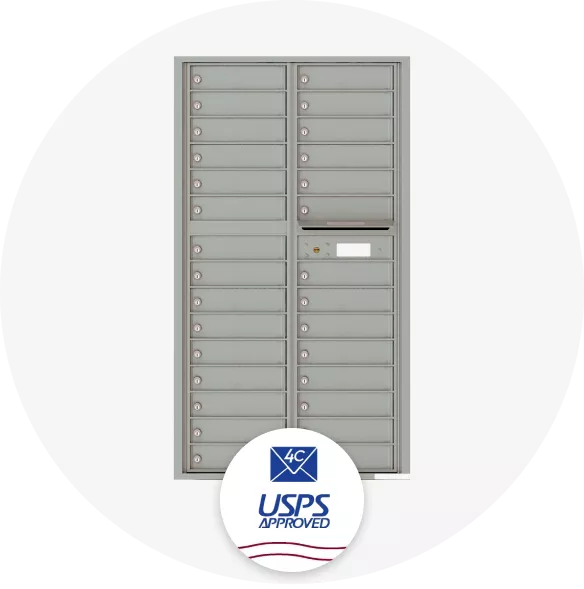

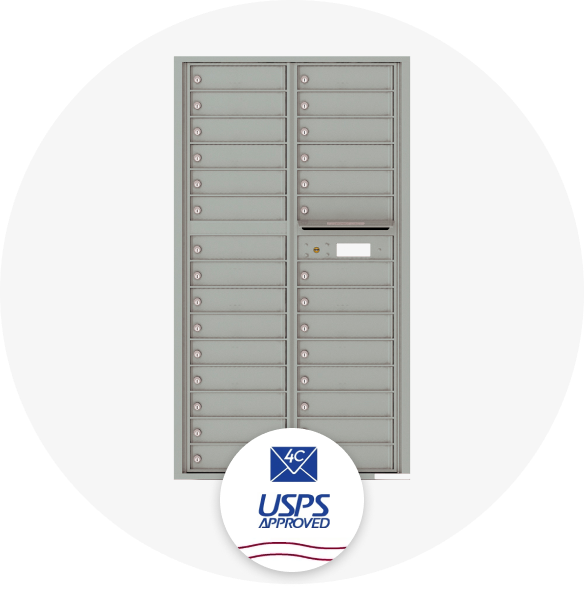

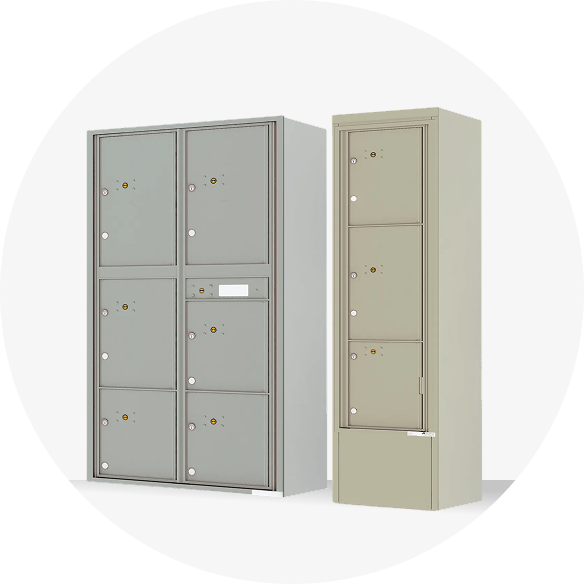

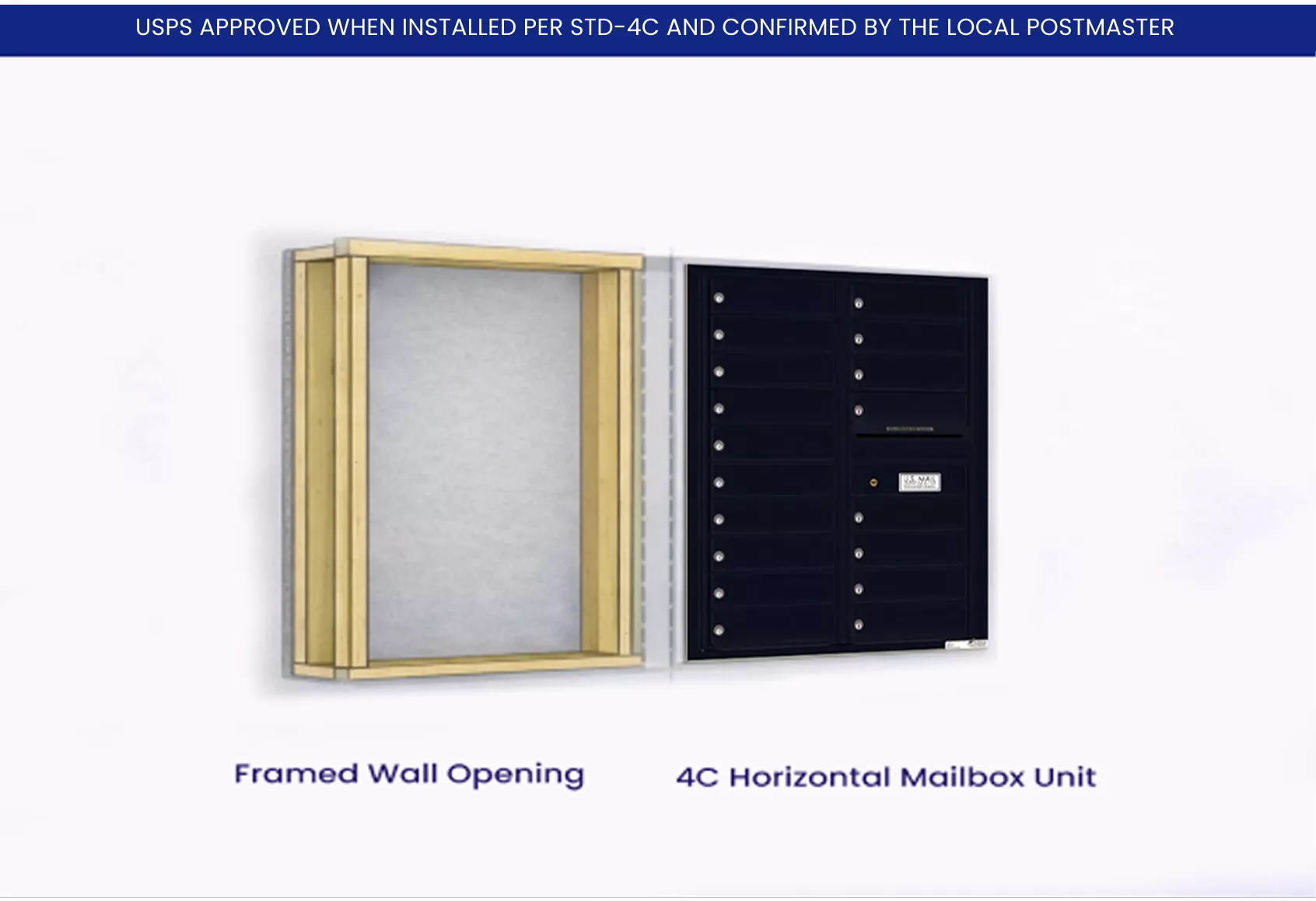

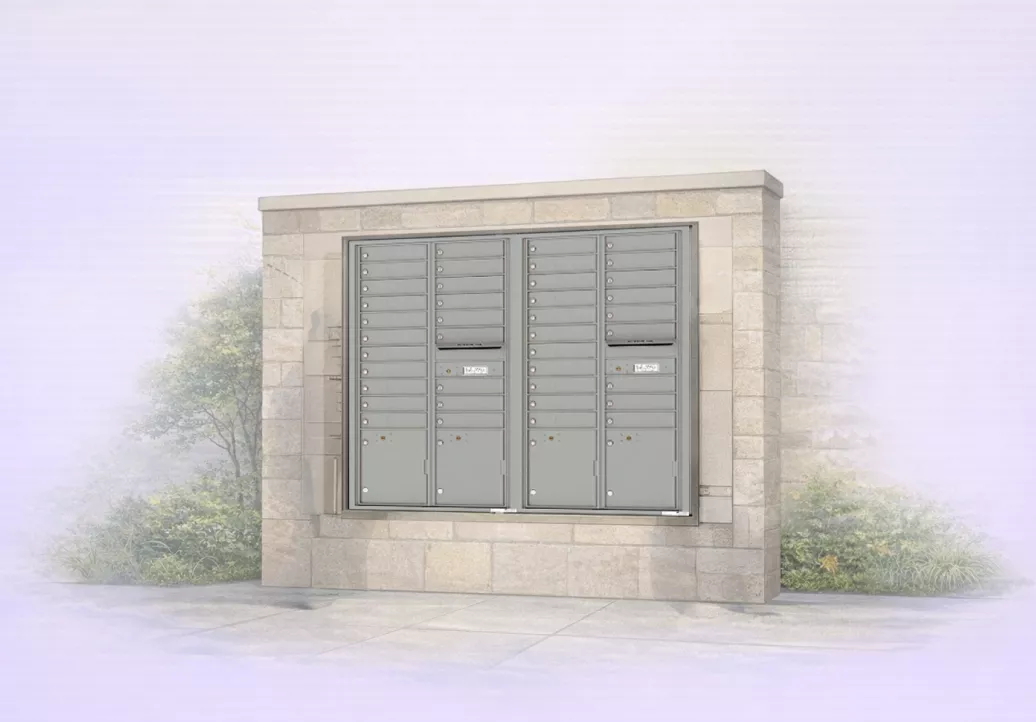

Yes, these mailboxes are designed for straightforward installation provided 1) proper planning precedes the installation and 2) licensed building or mailbox installation professionals are on site. The 4C's modular design allows them to fit into recessed and surface-mounted openings, provided they match the wall-opening specifications.

Installation typically involves securing the mailbox unit to a wall or a dedicated frame and ensuring it meets USPS and ADA height requirements. We strongly recommend customers procure professional mailbox installation to ensure compliance with all relevant standards and to guarantee the unit's security and functionality​.

There are several advantages:

• Enhanced Security: Built with robust materials and secure locking mechanisms, they provide superior protection against theft and vandalism.
• Compliance: They meet USPS and ADA standards, ensuring accessibility for all users.
• Versatility: Available in various configurations, including units with parcel lockers, they can accommodate different mail volumes and types of deliveries.
• Durability: These units suit indoor and outdoor installations and are designed to withstand harsh weather conditions.
• Efficiency: Centralized mail delivery improves efficiency for both postal workers and residents, reducing delivery times and simplifying mail retrieval.

Property owners or managers typically have responsibility for these units. They are in charge of purchasing, installing, and maintaining the mailboxes to ensure they comply with USPS standards and remain functional. Sometimes, the postal service might share the responsibility for ensuring proper installation and adherence to regulatory guidelines.

Centralized mail delivery refers to a system where mail for multiple recipients is delivered to a single location, such as a mailbox unit. This system is efficient for postal workers and convenient for residents, as it consolidates mail delivery and collection points. Centralized units are commonly used in apartment buildings, residential communities, and commercial properties to streamline mail distribution.

Yes, many 4C units within specific height ranges meet ADA guidelines. Look for specifically marked ADA-Compliant Units when shopping. They are designed to be accessible to individuals with disabilities, featuring compartments within reach ranges specified by the Americans with Disabilities Act. This includes ensuring that some compartments are installed at heights that individuals can easily access using wheelchairs.​

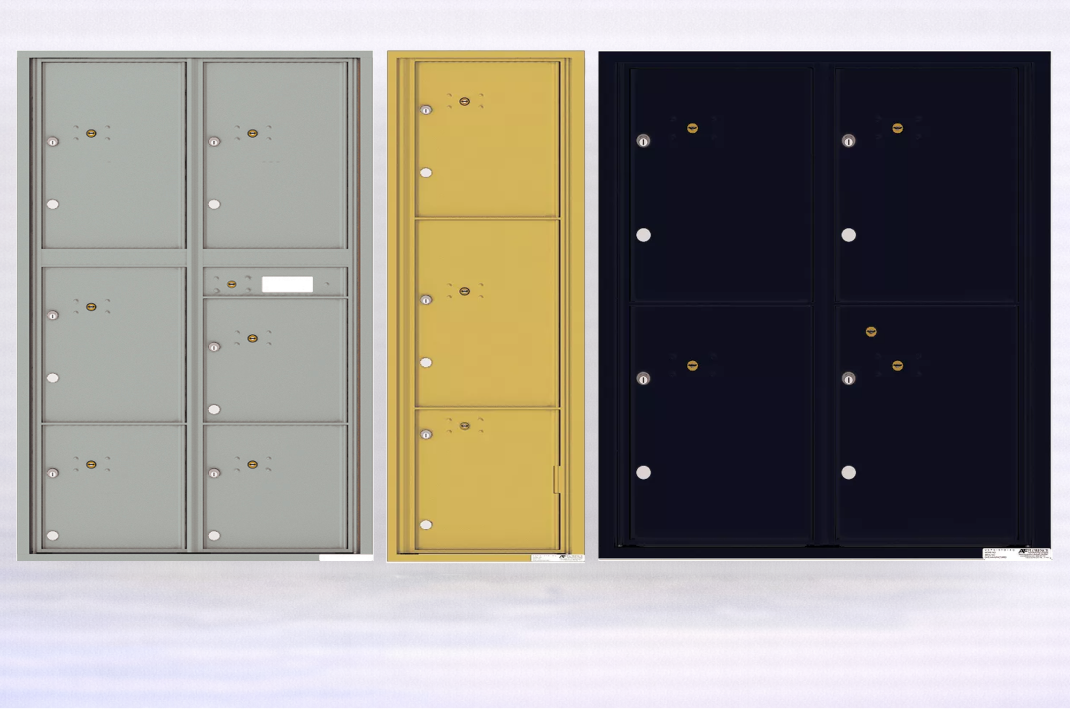

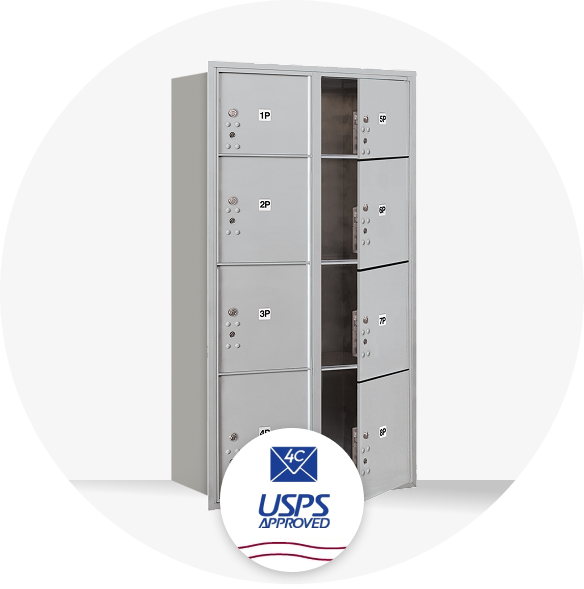

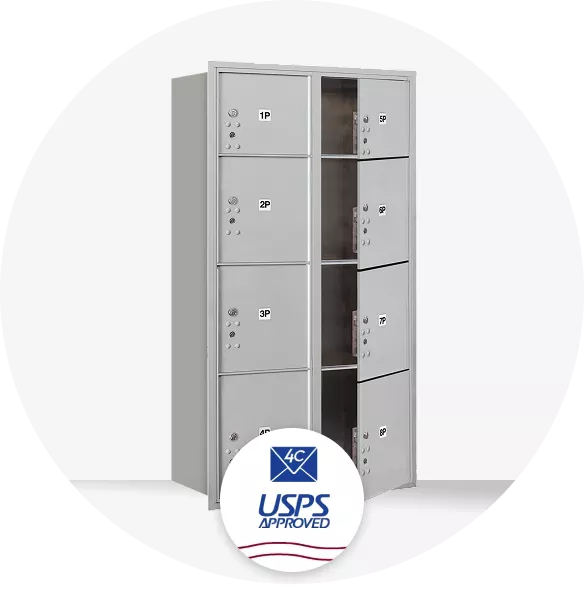

Parcel lockers are secure compartments within a mailbox unit designed to receive and store packages. They are typically larger than standard mail compartments, providing a safe and convenient way for residents to receive parcels that do not fit into regular mail slots. Parcel lockers ensure that packages are securely stored until the recipient can retrieve them.

How do parcel lockers work on 4C mailboxes?

In 4C mailbox units, parcel lockers are integrated into the overall design. Here's how they typically function:

1. Package Delivery: When postal workers deliver a package, they place it in a designated parcel locker.
2. Notification: The postal worker then places a key to the parcel locker in the recipient's regular mail compartment. This key is usually attached to a tag indicating the locker number.
3. Retrieval: The recipient uses the key to open the parcel locker and retrieve their package. Once used, the key typically remains locked in the parcel locker, preventing it from being reused until the postal worker retrieves it during the next mail delivery.

The size of the doors may vary depending on the specific design and configuration of the unit. However, standard tenant compartments in 4C mailboxes are typically 12 inches wide and 15 inches deep. This size ensures they can securely accommodate a typical day's worth of mail. Parcel locker doors are more oversized to handle packages, but the exact dimensions can vary based on the specific model and manufacturer.

The number of parcel lockers required in a 4C mailbox unit depends on the number of tenant compartments. The USPS generally recommends one parcel locker for every five tenant mail compartments. This ratio ensures adequate package space, reflecting the increasing volume of parcel deliveries in residential and commercial settings​.

Yes, 4C units can be customized to meet specific needs and preferences. Customization options include:

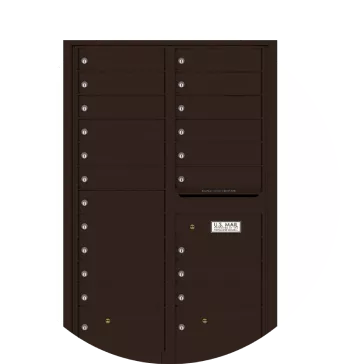

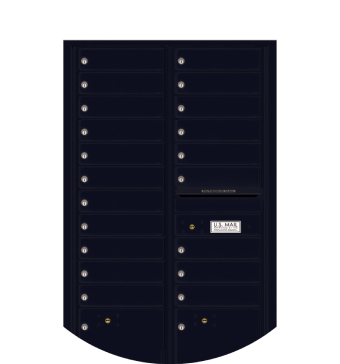

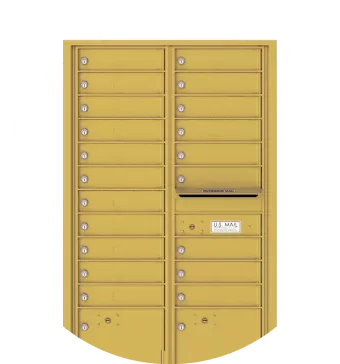

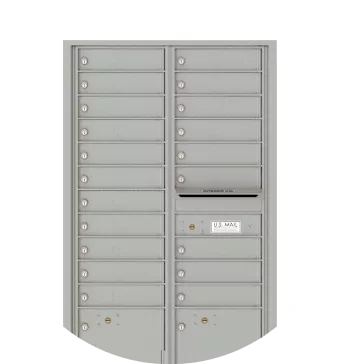

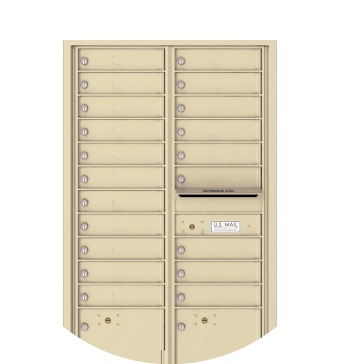

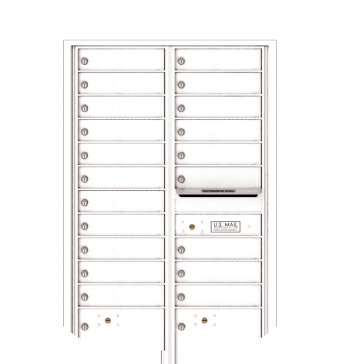

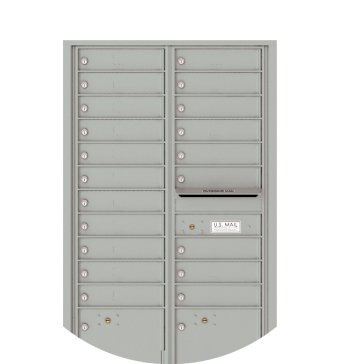

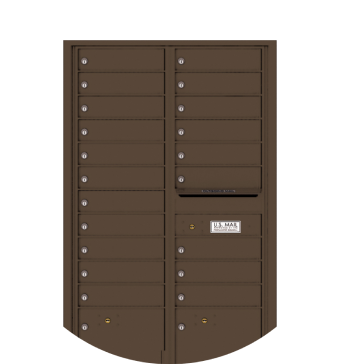

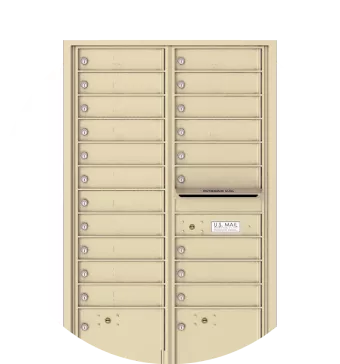

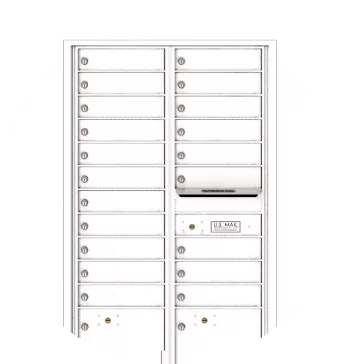

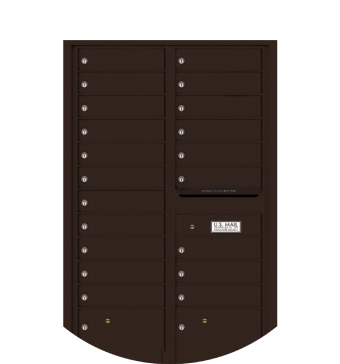

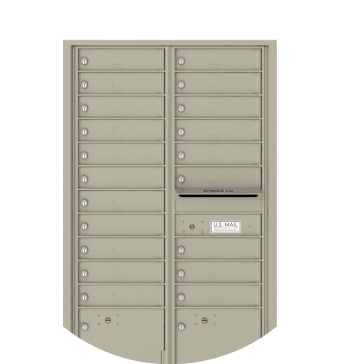

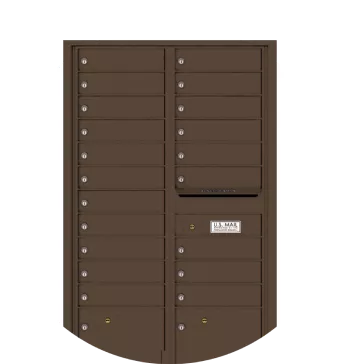

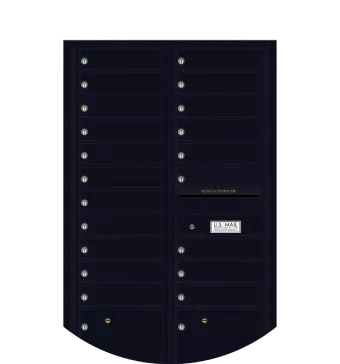

• Color and Finish: Choose from various colors and finishes to complement the aesthetic of your building or community.
• Configuration: Select the number of tenant compartments and parcel lockers to suit your specific requirements.

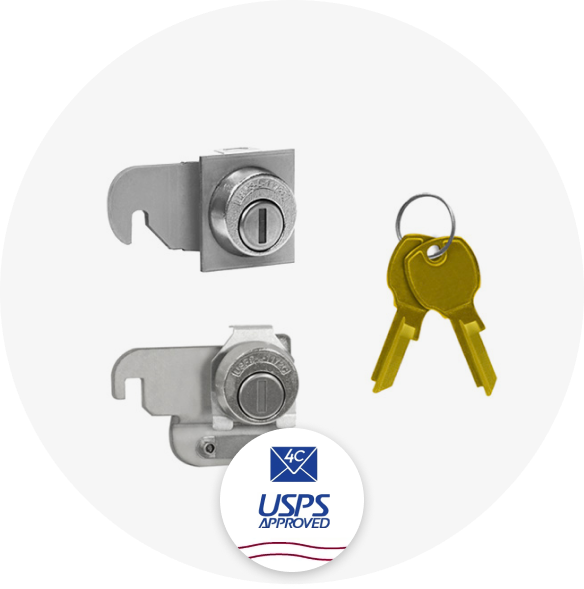

• Additional Features: Add custom engravings, logo placements, and lock types for enhanced security and personalization.

These customization options ensure that the mailbox unit fits seamlessly with the design and functional needs of the property.​

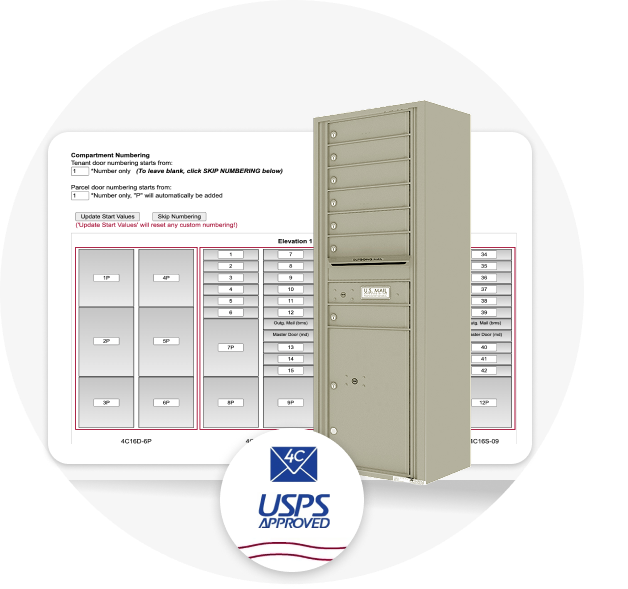

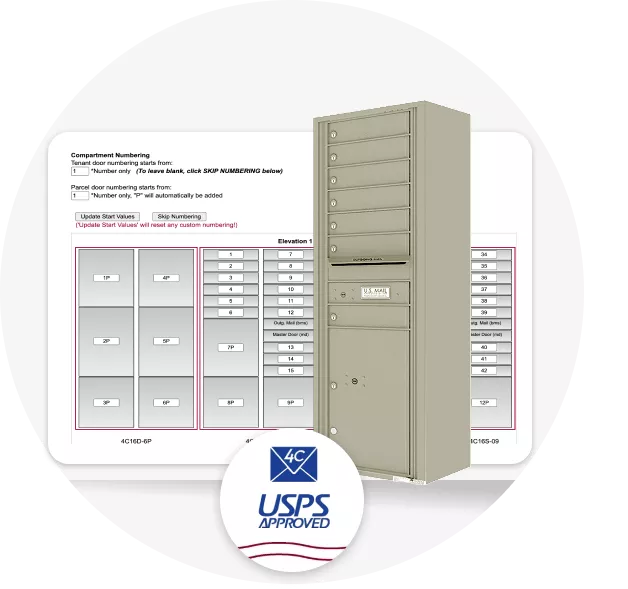

A mailbox configurator is an online tool that allows you to design and customize your 4C mailbox unit according to your needs. We can use this tool while building your quote. Using this tool, we can:

• Select the Layout: Choose the arrangement of tenant compartments and parcel lockers.
• Customize Features: Pick colors, finishes, and additional features like custom engravings or logo placements.
• Preview the Design: Visualize how the customized mailbox unit will look before purchasing.

The configurator simplifies designing a mailbox unit that meets USPS standards and your property's aesthetic and functional requirements.
