ADA Requirements For 4C Mailboxes: Full Guide

Introduction: Why ADA Compliance Matters for 4C Mailbox Installations

USPS-STD-4C compliant 4C horizontal mailboxes from manufacturers like Florence and Salsbury are engineered for high-security centralized mail delivery in apartments, condos, commercial buildings, and institutional facilities. Specified correctly, they satisfy USPS regulations and ADA reach-range requirements at the same installation height.

This guide is for architects, designers, contractors, and property managers selecting a 4C configuration that complies with ADA wheelchair reach limitations. The vertical location of the unit above the finished floor (AFF) controls how many tenant compartments fall within the compliant reach range.

The guide covers 4C installations only: recessed, surface-mounted, and free-standing. It does not address residential curbside mailboxes or outdoor cluster box units (CBUs).

ADA mailbox requirements span three regulatory bodies: USPS, the Americans with Disabilities Act (ADA), and the Fair Housing Act (FHA). The mailbox ADA requirements set by each overlap, and where they do, the most restrictive governs. A non-compliant installation does not just fail inspection; it means rework on a system that may already be framed, wired, and roughed in. This guide maps all three regulations to the 4C mounting and configuration decisions you are actually making.

ADA Requirements That Apply to 4C Horizontal Mailboxes

For interior 4C horizontal mailbox installations, ADA mailbox requirements set a clear baseline: at least 5% of mailboxes (and never fewer than one) must comply with operable parts standards. Compliant compartments must sit between 15 inches and 48 inches AFF, with 30 by 48 inches of clear floor space directly in front.

ADA classifies a mailbox as an "operable part," meaning any component a tenant must reach, grasp, pinch, or twist to use. For a 4C unit, that includes the compartment door, the patron lock, and the outgoing mail slot. Three ADA sections govern 4C installations directly:

1. Section 228.2 sets the scoping rule: how many compartments must comply.

2. Section 309 sets the operable parts rule: what counts as compliant.

3. Section 308.2.1 sets the forward reach range itself.

Section 309 carries the most 4C-specific weight. It governs the patron lock's mounting height, the operating force (no more than 5 pounds), and the requirement that the lock work with one hand without tight pinching or wrist twisting. Standard USPS Arrow Locks meet the force rule; mounting height is where specifiers slip up. Section 308.2.1 sets the ADA mailbox height boundary: lock centers between 15 and 48 inches AFF for any accessible compartment.

The 2010 ADA Standards at access-board.gov govern most 4C projects nationwide; the full statutory text is at ADA.gov. ADA also requires at least one ADA compliant mailbox in any residential dwelling unit with mobility features, regardless of the building-wide percentage.

Specifiers shopping ADA compliant 4C horizontal mailboxes should treat the 5% rule as a floor, not a ceiling. Senior living developments and local jurisdictions frequently push it to 100%.

The ADA Forward and Side Reach Range (15″ to 48″)

The reach range for ADA mailbox compliance on a 4C unit is 15 inches minimum to 48 inches maximum AFF, per Section 308.2.1. Lock centers, not the top of the door, are the reference point. These ADA mailbox height requirements apply to both forward and side approaches.

The 5% Rule: How Many Mailboxes Must Be ADA Compliant?

ADA Section 228.2 sets the minimum: at least 5% of interior compartments, and never fewer than one, must qualify as an ADA compliant mailbox under Section 309. For a 100-unit building with a centralized 4C mailroom, that's a minimum of five compliant compartments within the 15-to-48-inch range.

Local jurisdictions can override this. Senior living, accessible affordable housing, and some municipal codes push ADA mailbox regulations to 100% compliance. Architects should confirm the local requirement during schematic design.

The 5% baseline doesn't apply where covered dwelling units include mobility features under FHA. Those units need at least one compliant mailbox each.

Clear Floor Space in Front of the Mailbox

Clear floor space requires a 30-inch by 48-inch unobstructed area in front of every accessible 4C compartment, per Section 305. Reach-range compliance alone doesn't pass inspection without it.

This is where mailrooms fail compliance even when the 4C unit is correctly specified. A trash receptacle, package shelf, parcel cart, or radiator in the approach zone invalidates the floor space and disqualifies the unit as an ADA compliant mailbox. The floor space must stay clear from the finished floor up to 27 inches AFF.

The 6 USPS-STD-4C Installation Rules (and How They Interact With ADA)

The six rules below are USPS-STD-4C's installation requirements for 4C horizontal mailbox configurations, quoted verbatim. All USPS approved mailboxes supplied through Budget Mailboxes meet these mailbox requirements as the baseline. Installation must follow USPS-STD-4C as listed below and shown in Figure 3.

1. "At least one customer compartment shall be positioned less than 48" from the finished floor."

2. "No parcel locker compartment (interior bottom shelf) shall be positioned less than 15" from the finished floor."

3. "No patron lock shall be located more than 67" above the finished floor."

4. "No customer compartment (interior bottom shelf) shall be positioned less than 28" from the finished floor."

5. "The USPS Arrow lock shall be located between 36" and 48" above the finished floor."

6. "There must be at least one parcel locker for every ten patron mailboxes in installations of 10 or more patron mailboxes. There is no requirement for parcel lockers in installations of less than 10 patron mailboxes, but one or more parcel lockers are recommended."

A note on rule 6: the 1:10 ratio was tightened to 1:5 in the 2020 USPS revision (announced via the USPS Postal Bulletin). Current 4C mailbox installs should plan to 1:5. The full Federal Register text is at 39 CFR Part 111.

When STD-4C Applies: New Construction and Major Renovations

USPS-STD-4C took effect on October 5, 2006 and replaced STD-4B+. Any project built after that date receiving USPS centralized delivery must specify STD-4C compliant units that meet current ADA requirements.

Major renovations trigger the same requirement. USPS treats a renovation as "major" when it changes the building's mail delivery mode, expands the unit count, or replaces the centralized mailbox system. Cosmetic upgrades and hardware swaps don't count.

Replacements of compliant 4B horizontal mailboxes installed before October 2006 sit in a gray zone. They may be grandfathered when the swap is one-for-one. Property managers planning replacement community mailboxes should confirm the trigger threshold with the local postmaster, because postmaster discretion is wider than the written rules suggest on paper.

How to Measure AFF Correctly

Two measurement conventions trip up specifiers and account for most ADA mailbox height failures at inspection. Installation height is measured from the finished floor to the bottom of the lowest customer compartment door, not the cabinet edge or trim ring. Lock height is measured to the center of the lock, not its top edge.

A unit specified at 28 inches "to the bottom of the cabinet" sits at the wrong height when the cabinet includes a 2-inch trim ring above the lowest compartment. Confirm the manufacturer's installation diagrams show "lowest door bottom" as the reference, and verify lock-center placement before locking it into the schedule.

How the Fair Housing Act (FHA) Applies to 4C Mailbox Installations

FHA is a co-equal regulator most specifiers under-weight when planning a 4C installation. For multifamily buildings where 4C horizontal mailboxes are the standard delivery system, FHA rules apply on top of ADA and USPS. The mailbox ADA requirements governing public-accommodation 4C projects sit inside ADA, but in covered multifamily housing FHA drives the actual mailroom design. HUD's FHA design requirements live at hud.gov.

For multifamily projects, FHA applies to any building with four or more dwelling units first occupied after March 13, 1991. If the building has an elevator, FHA covers all units, which means every tenant needs an ADA compliant mailbox in the 4C bank. Without an elevator, FHA covers ground-floor units only. The 4C mailroom sits in common-use space, so FHA's ADA mailbox requirements apply regardless of which units a tenant occupies.

Where FHA and ADA conflict, the stricter rule wins. The two agree on the 48-inch upper reach limit but diverge on three 4C decisions: mounting type (FHA's 4-inch protruding-objects rule narrows surface-mount eligibility), corridor clearance, and mailroom scope (FHA's covered-unit rule replaces ADA's 5% sampling).

FHA Reach Range (15″–48″ Forward-Facing)

FHA sets the same ADA mailbox height boundaries as ADA for forward-facing approach: accessible compartments must sit no lower than 15 inches and no higher than 48 inches AFF. The numbers match ADA Section 308.2.1 and USPS-STD-4C's parcel locker shelf minimum.

A 4C unit installed in a corridor where tenants approach from the side may fall under ANSI 117.1 obstructed side-reach allowances, which permit a lower 46-inch upper bound under certain conditions. Default to forward approach and confirm mailbox height requirements against the specific mailroom layout.

Accessible Common-Use Areas and FHA Requirement 2

FHA Requirement 2 mandates that covered multifamily buildings provide accessible public and common-use areas. HUD's Fair Housing Act Design Manual names mailrooms and 4C mailboxes explicitly. Treating the 4C mailroom as accessible common-use space is the rule.

The scoping math runs differently than ADA. ADA's 5% rule lets a 200-unit building meet ADA mailbox regulations with 10 compliant compartments. FHA scales with covered dwelling units: every covered tenant needs an ADA compliant mailbox, not a 5% sample. For a fully covered elevator building, that's 100%.

When a project falls under both FHA and ADA, the stricter rule wins. For 4C mailrooms in covered multifamily buildings, that's almost always FHA.

The Protruding Objects Rule and 4C Mounting Type Selection

FHA prohibits any wall-mounted object from protruding more than 4 inches into a circulation path between 27 and 80 inches AFF. This single rule decides whether a 4C unit can be surface-mounted in a given space.

Surface-mounted 4C units protrude further from the wall than recessed units because the enclosure collar adds depth. In a 36-inch corridor, a 4-inch protrusion is borderline. Surface-mount can quietly invalidate an otherwise-compliant 4C mailbox system.

The fix: use recessed-mount 4C horizontal mailboxes in corridors and circulation paths, and reserve surface-mount for dedicated mailrooms with adequate clearance. The under-27-inch exception rarely helps, since accessible compartments sit well above that line where the protruding-objects rule is in full effect for any ADA compliant mailbox installation.

USPS vs ADA vs FHA: Which Rule Wins for 4C Installations?

When two regulators disagree, the stricter rule wins. For 4C horizontal mailbox installations, that translates into one practical design ceiling: 48 inches AFF for any compartment that needs to count as accessible. The table below stacks the three regulators side by side.

USPS allows installation heights that ADA mailbox requirements and FHA don't. The patron lock can sit up to 67 inches AFF under STD-4C, but USPS rules don't account for wheelchair users. The moment ADA or FHA enters the picture, that 67-inch allowance falls away. Specifiers working strictly to USPS will pass USPS inspection and fail their own state accessibility audit.

The clean specification path: place accessible compartments below 48 inches and non-accessible above (USPS allows up to 67), then verify lock-center placement before sign-off. That single approach satisfies all three sets of inspectors and answers the bulk of USPS, ADA, and FHA requirements in plan review. ADA's 5% rule does not override FHA's covered-unit rule when both apply, and the broader mailbox ADA requirements stack accordingly for any apartment mailboxes project.

ADA Compliant 4C Mailbox Configurations by Door Height

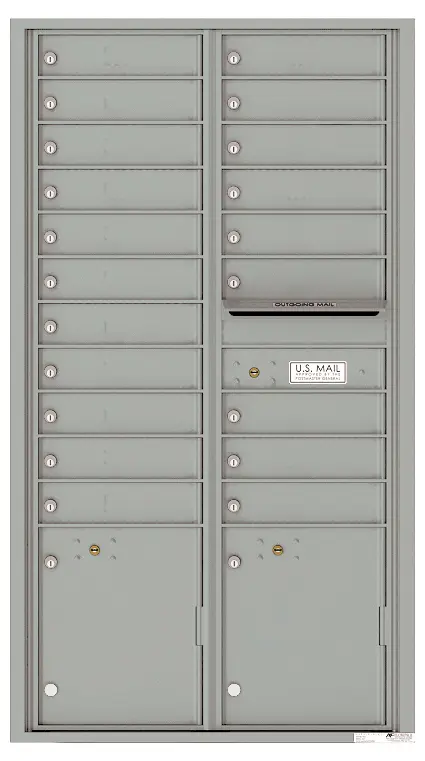

Across both Florence versatile™ 4C and Salsbury 3700 series lines, three cabinet configurations are ADA compliant: 6 Door High, 10 Door High, and ADA Compliant MAX Height. All three position tenant compartments within the 15-to-48-inch reach range when installed at the correct AFF. Taller cabinets include compliant compartments in the bottom rows. Both manufacturers organize their catalogs around cabinet height. Standard Height suites require lock-center placement within the 15-to-48-inch range; ADA Max Height suites are engineered at a fixed 37-1/4-inch cabinet height so the maximum number of compartments falls within reach range. The table below maps the four most common cabinet heights to typical 4C mailbox configurations.

For a covered FHA multifamily project, the 6 Door High, 10 Door High, and ADA Compliant MAX Height cabinets are the clean choice — every tenant compartment qualifies as accessible. The 11 Door High and Maximum Height cabinets carry more capacity and remain partially ADA compliant: tenant compartments in the bottom rows meet the 15-to-48-inch reach range, while upper-row compartments sit outside it. Where total project capacity matters more than 100% accessibility, these taller cabinets remain a viable choice. You can shop ADA max height 4C mailboxes across both Salsbury and Florence configurations at our store!

Recessed vs Surface-Mounted vs Free-Standing 4C: ADA Considerations by Mounting Type

The mounting-type decision drives more compliance outcomes than any single specification except cabinet height.

• Recessed-mount: Units sit flush in the wall with only the trim ring exposed. They avoid the FHA 4-inch protruding-objects rule entirely. Confirm a rough-opening depth of at least 17 inches during framing. USPS approves recessed-mount 4C horizontal mailboxes for direct mail delivery, which makes them the default for new construction and any covered FHA project.

• Surface-mounted: Units install against the finished wall using an enclosure collar. The collar protrudes outward and puts the unit in scope of the FHA 4-inch rule between 27 and 80 inches AFF. Verify corridor width before specifying. USPS treats surface-mounted units as private delivery unless the local postmaster grants approval.

• Free-standing depot cabinet: Units sit in a steel enclosure that functions like a CBU but houses 4C compartments. Specifiers need an accessible route from parking or entrance, weather-protected approach, and adequate turning radius. Free-standing depots are private delivery unless USPS approves the location, the same restriction that applies to surface-mount 4C units.

Pre-Installation ADA Compliance Checklist for 4C Mailboxes

This checklist consolidates every compliance step before placing a 4C order. Each item maps to a specific compliance requirement under USPS-STD-4C, ADA, or FHA.

• Confirm regulatory scope: which of ADA, FHA, and USPS-STD-4C apply.

• Confirm 4C mounting type: recessed, surface-mounted, or free-standing.

• Verify corridor width for surface-mount: enclosure-collar protrusion within FHA's 4-inch limit between 27 and 80 inches AFF.

• Specify cabinet height: 6 Door High or ADA Max Height (37-1/4 inch) for full ADA compliance, or 11 Door High / Maximum Height for higher capacity.

• Confirm AFF measurement: to the bottom of the lowest customer compartment door, not the cabinet edge.

• Verify reach-range placement: lock centers between 15 and 48 inches AFF for every accessible compartment.

• Verify clear floor space: 30 by 48 inches unobstructed in front of every accessible compartment.

• Confirm compliance count: minimum 5% per Section 228.2; 100% under FHA for covered elevator buildings.

• Confirm parcel locker ratio: 1 parcel locker per 5 tenant compartments in installs of 10 or more (2020 update).

• Verify numbering scheme with the local postmaster before ordering custom placards.

• Coordinate with local postmaster: schedule the USPS Delivery Planning Manager visit before installation.

• Confirm Arrow Lock step: the postmaster supplies and installs the Arrow Lock.

• Verify accessible route (free-standing): from parking or entrance to the cabinet.

• Cross-check this checklist against the architect's plan view and elevation before the unit ships.

Our Bulk Quote Team handles configuration verification, lead-time confirmation, and custom-engraving coordination before the order ships.

Getting Local Postmaster Approval

Every 4C installation receiving USPS delivery needs local postmaster sign-off. The USPS Delivery Planning Manager visits the site, verifies against STD-4C requirements, and installs the USPS Arrow Lock. The full delivery-mode guidance lives in the Postal Operations Manual.

Schedule this visit during construction, not after move-in. Postmasters often have specific preferences on numbering, parcel locker placement, and collection access that aren't in the standard but are required locally. For new construction, the local code inspector may also review before the certificate of occupancy.

Final Thoughts and Next Steps

The 48-inch ceiling is the practical design rule for any 4C project subject to ADA or FHA. USPS allows higher patron lock placements, but the moment a project lives under ADA or FHA, the stricter ceiling governs.

Specifying the right 4C configuration starts with confirming which regulators apply, then matching cabinet height and mounting type to the project's spatial and accessibility constraints. Request a bulk quote or contact our team directly with your project specs.

What Is the Reach Range for an ADA Mailbox?

For a 4C horizontal mailbox, the ADA forward and side reach range is 15 inches minimum to 48 inches maximum above the finished floor, per Section 308.2.1. Tenant compartment locks and access points on a 4C unit must fall within this range to count as ADA-compliant.

Both numbers are measured to the operable part, which means the lock center, not the top edge of the door. The same range applies to side reach under Section 308.3.1, so a unit approached from the side stays governed by the same 15-to-48-inch boundaries.

What Is the Most Common ADA Violation for 4C Mailbox Installations?

The most common violation is installing 4C units at a height that places patron locks above 48 inches AFF without accessible alternatives below that line. USPS allows patron locks up to 67 inches, and specifiers default to USPS without checking ADA's stricter ceiling.

Three secondary violations appear regularly: surface-mounted units with collars protruding more than 4 inches between 27 and 80 inches AFF, obstructed clear floor space (trash bins, parcel carts, or radiators in the 30-by-48-inch zone), and mailrooms with fewer than 5% compliant compartments per Section 228.2.

What Are the Legal Requirements for a 4C Mailbox Installation?

A 4C horizontal mailbox installation receiving USPS delivery must meet USPS-STD-4C, effective October 2006. Interior 4C mailrooms in commercial and multifamily buildings must additionally comply with ADA Section 228.2 (5% accessible) and Section 309 (operable parts). Multifamily buildings under FHA must provide an accessible 4C mailroom per Requirement 2.

All three regulators stack. For most 4C projects, the combined effect produces one practical design ceiling: 48 inches AFF for any compartment that needs to count as accessible.
